paragon hydraair air compressor

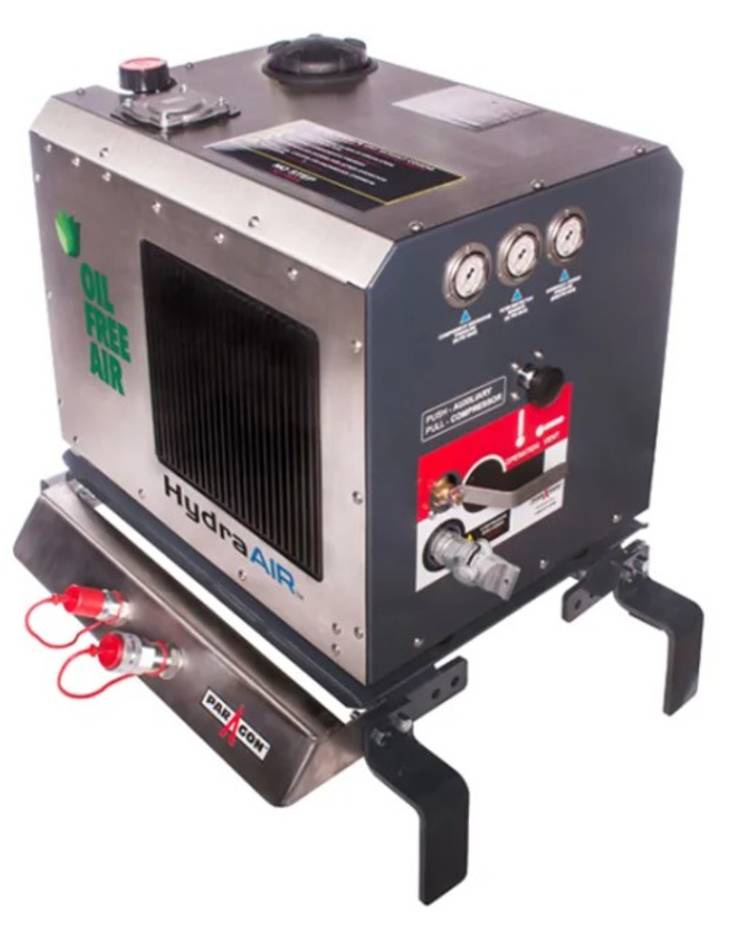

Paragon HydraAIR Oil Free Piston Air Compressor

Item #: HA-300H
Price: CALL
    The product is in stock Availability: Check Status
    Usually ships In 1-2 Business Days
    Compressors:


    Update price
    Quantity:
    Paragon

    About This Item

    • Oil-free piston air compressor
    • Integrated hydraulic oil cooler
    • Supplied with tractor/trailer auxillary hydraulic circuit
    • Behind the cab mounting requires no frame rail space
    • With and without PTO-Motor options
    • Made in the U.S.A.

    Paragon HydraAIR oil free piston air compressor for chemicals, crude, oil or LPG applications that can be mounted and hydraulically driven by the HydraAIR. Tractor and/or trailer product pump packages are available, with up to 270 GPM Delivery.

    HydraAir Compressor Components

    • Piston Oil Free Air Compressor
    • Optional High Flow Oil Free Air delivery for optimal off-loading performance
    • Hydraulic Cooler
    • Hydraulic Return Filtration
    • Hydraulic Reservoir
    • Passenger Side Gauge Package: Hydraulic System Pressure, Hydraulic Filter Condition Indicator & Air Pressure
    • Selector Valve for either Air Compressor or Tractor/Trailer Hydraulic Auxiliary requirements
    • Air Connection 3/4" Chicago Fitting
    • Air Compressor Operation Valve
    • Optional Front Connection Panel for Hydraulic Hoses, In-Transit Heat & Trailer Air and Electrical connections
    • Chemical Hose retention Eye Hooks included
    • Custom Hose Rack is Optional - hose rack designed to mount directly to the HydraAIR, for chemical hose & air hose storage
    • HA300S4X complete unit also ships with Blackmer G125 pump, Municie PTO (Eaton transmissions), hydraulic motor, fittings, camlocks.

    Installation Requirements

    • Dimensions: 32.34" W x 19.97" deep. With 3" for Air Flow, back of cab to front of HydraAIR is less than 23", allowing ample room for Trailer clearance
    • Flexible Mounting Feet for Frame Mounting allows installer to work around existing frame mounted components and fasteners
    • Only Two Hydraulic Hose connections are required from the HydraAIR to the PTO/Hydraulic Pump simplifying the quick installation time of the HydraAIR to the Tractor.

    (1) HydraAir unit includes piston oil-free air compressor, hydraulic cooler, hydraulic return filtration system, hydraulic reservoir, passenger side gauge package, selector valve, air connection 3/4" Chicago fitting, air compressor operation valve.

    NOTE: the #HA300S4X complete unit ships with Blackmer G125 pump, Municie PTO (Eaton transmissions), hydraulic motor, fittings, camlocks. Call for other transmission models.
